Trailsmart
Next generation adventure bike tire for on-road and light off-road use

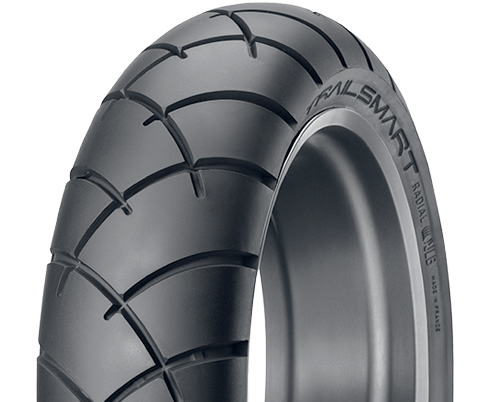

TIRE OVERVIEW Trailsmart
Dunlop’s latest high-performance adventure-touring tire, the Trailsmart, is a new-generation adventure tire designed for today’s high-performance adventure bikes. For riders who venture off-road between asphalt excursions, the Trailsmart is available in a variety of sizes to fit 650cc dual-sport bikes all the way to the biggest adventure bikes.
Dunlop’s latest high-performance adventure-touring tire, the Trailsmart, is a new-generation adventure tire designed for today’s high-performance adventure bikes. For riders who venture off-road between asphalt excursions, the Trailsmart is available in a variety of sizes to fit 650cc dual-sport bikes all the way to the biggest adventure bikes.
ADDITIONAL TIRE
FEATURES
- Designed for riders who primarily travel on the street, but also venture off-road
- New tread pattern with intersecting grooves increases wet-weather performance as well as off-road traction
- Large footprint and even pressure distribution helps increase traction and mileage
- Silica-fortified tread compound enhances traction and grip in wet and dry weather, and helps reduce rolling resistance for better mileage.
TIRE PHOTOS
The Age of Adventure
High mileage, a smooth ride, great wet and dry grip, and capable of tackling off-road exploration as well, the all-new Trailsmart is a new generation adventure tire for a new generation of adventure riders who want a tire that can take them just about anywhere they want to go.
Off-Road Exploration
The Trailsmart features Dunlop’s new XGT Cross Groove tread pattern. Intersecting tread grooves rapidly evacuate water in wet conditions, and help to find traction off-road. The grooves also aid in bump absorption, which helps the tires roll over small obstacles for greater off-road traction.
Size Variety
With a broad size range including 19- and 21-inch fronts and 17- and 18-inch rears, the Trailsmart covers a huge selection of adventure bikes, from middleweights to the 150-horsepower big-displacement machines at the top of the food chain.
Trailsmart Spec Chart
| Tire Name | Size | Load/Speed Index | Sidewall | Part Number | Applicable Rims Recommended Rim | Overall Diameter | Overall Width | Full Tread Depth | Maximum Load @ PSI |  |
| Trailsmart Front | 110/80R19 | 59V | BW | 16TF-05 | 2.50 | 26.02 | 4.16 | 5/32 | 536@42 | |
| Trailsmart Front | 120/70ZR19 | 60W | BW | 16TF-06 | 3.50 | 25.75 | 4.96 | 5/32 | 551@42 | |
| Trailsmart Front | 100/90-19 | 57H | BW | 16TF-01 | 2.50 | 26.15 | 3.99 | 5/32 | 507@41 | |
| Trailsmart Front | 90/90-21 | 54V | BW | 16TF-02 | 2.15 | 27.88 | 3.68 | 5/32 | 467@42 | |
| Trailsmart Rear | 120/90-17 | 64S | BW | 16TR-03 | 2.75 | 25.49 | 5.02 | 9/32 | 617@36 | |
| Trailsmart Rear | 130/80-17 | 65S | BW | 16TR-04 | 3.00 | 25.24 | 5.07 | 9/32 | ||
| Trailsmart Rear | 130/80R17 | 65H | BW | 16TR-07 | 3.00 | 25.25 | 5.12 | 9/32 | ||
| Trailsmart Rear | 140/80R17 | 69H | BW | 16TR-08 | 3.50 | 25.65 | 5.62 | 9/32 | 639@41 | |
| Trailsmart Rear | 150/70R17 | 69V | BW | 16TR-09 | 4.25 | 26.41 | 6.06 | 10/32 | 716@42 | |
| Trailsmart Rear | 170/60ZR17 | 72W | BW | 16TR-10 | 4.50 | 25.15 | 6.68 | 10/32 | 783@42 | |
| Trailsmart Rear | 150/70R18 | 70V | BW | 16TR-11 | 4.25 | 26.41 | 6.06 | 10/32 | 739@42 |
